How does a transformer work?

The shortest useful picture

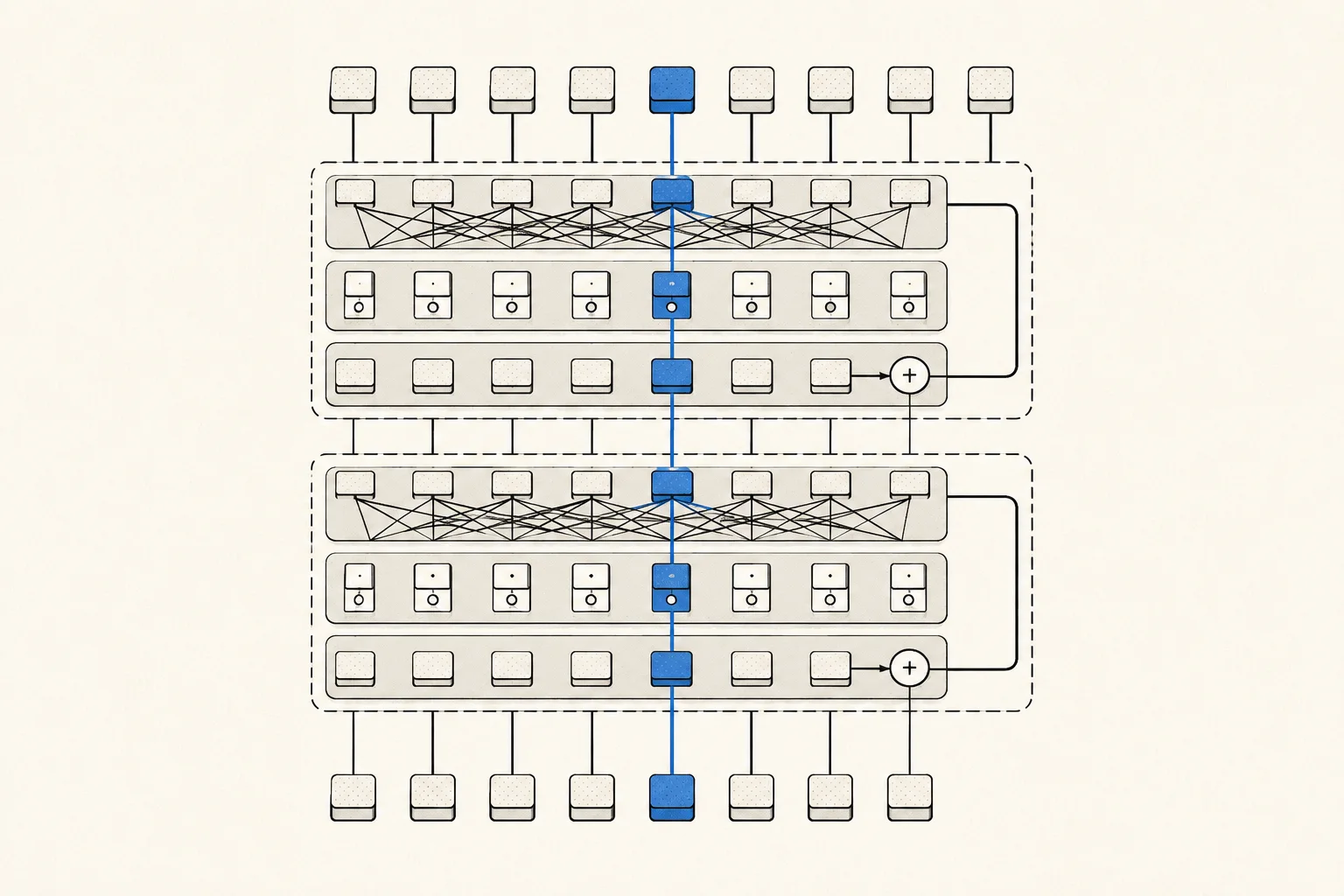

The tokenizer produces token IDs and the model looks up an initial embedding for each position. A transformer then applies a stack of blocks. Each block has two main transformations: attention lets positions read selected information from other positions, and a feed-forward network transforms each position independently. Residual connections add each result back to the running representation instead of replacing it. Normalization keeps activations at workable scales; architectures differ in whether it appears before or after each transformation.

A Transformer block updates a running representation through repeated, structured transformations; it is not one undifferentiated “AI operation.”

flowchart LR
  T[Token embeddings + position] --> A[Self-attention]
  A --> R1[Add to residual stream]
  R1 --> F[Feed-forward network]
  F --> R2[Add to residual stream]
  R2 --> N[Next transformer block]

After many blocks, the representation at the prediction position is converted into a score for every vocabulary token. A decoding rule selects the next token, appends it, and the model runs again.

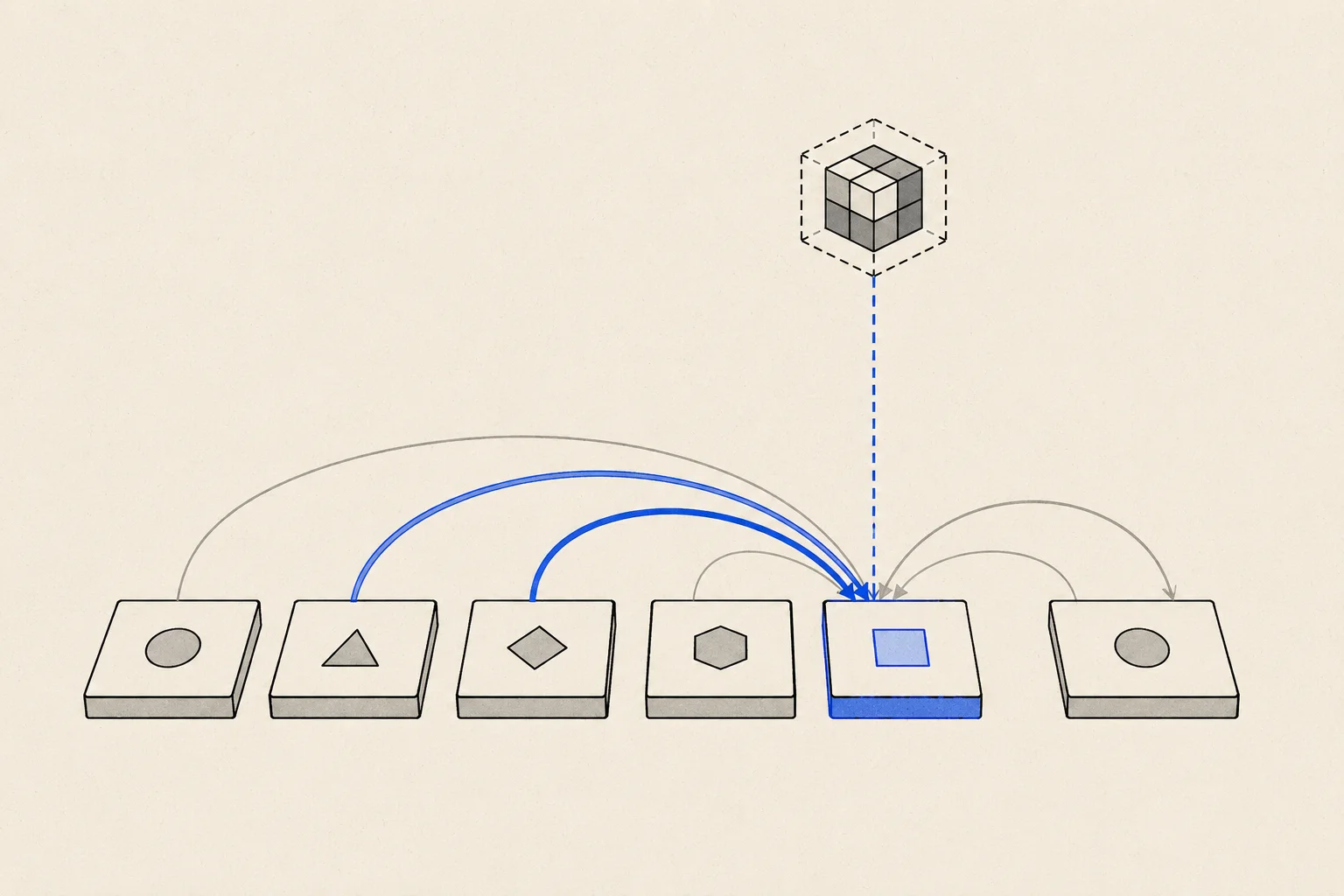

Attention as addressed reading

For each position, the layer computes a query describing what information that position is looking for. Every position also offers a key describing what it contains and a value carrying information that can be copied. Query–key compatibility becomes a set of weights; the weighted values are combined into an update.

The selected position mixes information from permitted positions with different learned weights; strong connections are selective, not proof of a human-readable explanation.

This is easier to remember as three questions:

1. What am I looking for? — query.
2. What does each position advertise? — keys.
3. What information should I take from matching positions? — values.

A head can learn a useful pattern, but engineers should not assume every attention weight has one clean human interpretation. Models use several heads per layer and many layers, while feed-forward networks and residual paths also carry computation.

Order, masking, and context

Attention alone does not know token order, so the model receives positional information. In a causal language model, a mask prevents a position from reading future tokens during next-token training. The representation of the same token can therefore change with its surrounding tokens, position, and the layers already applied.

The model does not search its training data when it answers. Training has shaped the parameters that control these transformations. At inference time, the transformer runs those learned operations on the current token context.

Attention weights are not explanations

Attention is not a database lookup, a citation system, or proof that a model “looked at” a passage in a human sense. A transformer is not the whole chat product: tokenization, sampling, prompts, tools, retrieval, safety controls, and the agent harness live around it.

The architecture also does not guarantee factuality or long-range reasoning. A larger context window permits more tokens to enter the computation, but it does not guarantee that every relevant detail will influence the answer correctly.

Evaluate the model beyond a diagram

Most product teams test the model's observable behaviour rather than individual attention heads. Freeze the tokenizer, prompt format, weights, decoding settings, and runtime; then evaluate exact contracts, semantic outcomes, important slices, latency, memory, and cost.

For architecture work, compare outputs against a small trusted implementation, test mask and positional boundaries, verify tensor shapes, and check numerical behaviour across devices and precisions. Use controlled sequences where the expected dependency is known. A visualization can help form a hypothesis, but an attention plot alone is not evidence that the model used information correctly.

For applications, include long contexts with distractors, reordered evidence, conflicting instructions, negation, and facts near context boundaries. Evaluate the final answer and any resulting effects, not only token probabilities.
